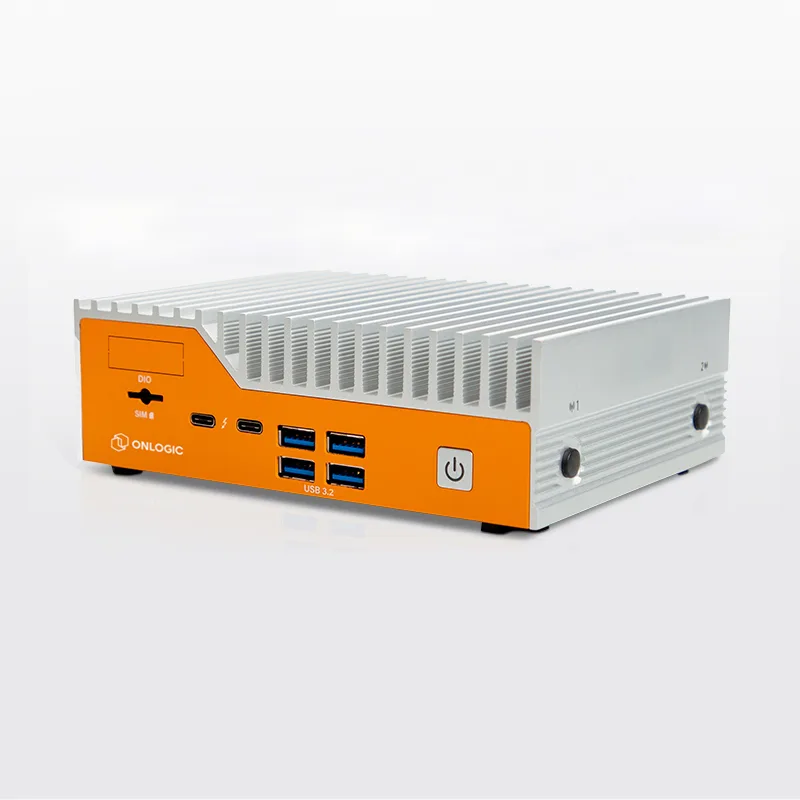

Helix 401 Fanless Hybrid-Core Computer
SKU: HX401The Helix 401 offers scalable, high-performance processing and accelerated graphical display functionality to simultaneously drive multiple 4K displays, making it the ideal fanless computer for many Automation and IIoT applications. As a certified Red Hat system, the Helix 401 is ready to support Red Hat Enterprise Linux versions 8.7 , 9.1, and beyond.
- Intel 12th Generation Hybrid-Core processing
- 4x USB 3.2 Gen 2, 2x Thunderbolt™ 4
- 4x concurrent 4k displays
Configure & Buy
Need Help? Talk to a Solution Specialist -
OnLogic offers Free Economy Shipping within the United States on all online orders of $250 and above. If your purchase qualifies for Free Economy Shipping, you will see this option available at the time of checkout.
We only offer Free Economy Shipping to orders shipped within the lower 48 states of the US (excludes Hawaii and Alaska). For Canadian and International customers, we have an Economy Shipping option available via USPS on certain products. For smaller components, this can help reduce overall shipping costs.
For European customers, we have a website and store located in the EU at www.onlogic.com/eu/. If there is something you don't see on the European site, please contact info@onlogic.com
Overview
NEXT GENERATION PROCESSING
The Helix 401 can be configured with a range of Intel® 12th Generation (formerly known as Alder Lake) Celeron and Hybrid-Core i3, i5, and i7 processors. DDR5 memory provides increased bandwidth and reduced latency, all while consuming less power. Graphics are provided by the Intel Iris® Xe graphics architecture, delivering up to 2.47x faster graphics and supporting four concurrent 4K displays.
POWERFUL, COMPACT, FANLESS COMPUTING
The sub-28W powered Helix 401 has the horsepower to drive mission-critical applications while small enough to fit in space constrained locations or enclosures. With multiple mounting options including wall, VESA or DIN Rail, the Helix 401 is able accommodate various installation requirements. The fanless Helix 401 chassis is purpose-built to draw heat away from internal components and dissipate the heat uniformly over carefully engineered cooling fins.
DATA INTERFACES AND EXPANSION
The Helix 401 is an ideal industrial computer for data acquisition or when using a programmable logic controller to execute tasks in unmanned or difficult to reach installations. The front and back faceplate offer various options to connect to devices using USB 3.2, and Thunderbolt 4. Additionally, an onboard M.2 slot provides the Helix 401 with additional storage and connectivity capabilities.
CELLULAR CONNECTIVITY
This system can be configured with an integrated cellular modem, pre-certified to operate on many of the world’s most popular cellular carrier networks using a SIM card. Our 4G/5G capable hardware is ideal for today's mobile, edge computing, and Industrial Internet of Things (IIoT) applications. The wireless connectivity has been tested to operate reliably in challenging Electromagnetic Compatibility (EMC) environments (EN 300 328, EN 301 908-2, EN 301 489-17, EN 301 489-52). Many of our systems also include co-location options allowing you to implement Wi-Fi and Bluetooth, in addition to cellular connectivity, at the same time. To take advantage of cellular connectivity, simply configure your system with one of our available cellular modems and then contact your carrier to activate.
This system is Ubuntu Certified! Ubuntu Certified Hardware (UCHW) devices have been extensively tested by Canonical, the organizing body behind Ubuntu. They feature official Ubuntu software images which are tested by Canonical on certified systems prior to the release of any new updates to validate functionality and ensure continued reliable operation. We offer pre-installed Ubuntu Certified OS options for Desktop or Server, as well as an option for customers who would like to install their own Ubuntu image (Ubuntu Certified Hardware - No OS Installed). Learn more about OnLogic’s participation in the Ubuntu Certified Hardware program in our blog post.
Make it possible with the Helix 401
OnLogic & Intel®: Powering Possibilities
Unlock the potential of your project with our advanced industrial computers, engineered for the edge and fueled by powerful Intel AI processing.
Specifications
| Hardware Line | Industrial (Fanless) |
| Cooling Type | Fanless |
| Processor Generation | Alder Lake |
| Processor | Intel Alder Lake 12th Gen Celeron 7305EIntel Alder Lake 12th Gen i3-1220PEIntel Alder Lake 12th Gen i5-1250PEIntel Alder Lake 12th Gen i7-1270PE |
| Processor Model | Intel Celeron ; Intel Core |
| LAN Controller | Intel I210-IT GbEIntel I219 GbE |
| Motherboard Expansion Slots | 3 |
| Motherboard Form Factor | NUC |
| Motherboard Memory Slots | 2 |
| Graphics/GPU | Intel Iris Xe (i5, i7) - Dual Channel memory requiredIntel UHD Graphics (Celeron, i3) |
| Memory Type | DDR5 |
| Memory Capacity | 64 |
| Memory Clock Speed | 4800 |
| Memory Channels | Dual Channel |
| Number of Displays Supported | 4 |
| Display Mounting Options | VESA Mount (MIS-D 75, 100) |
| Front I/O | 1x Power Button (LED Backlit) 4x USB 3.2 Gen 2 2x Thunderbolt 4 (40 Gb/s) 3FF-Sim slot (Mapped to the B-Key) 1x DIO port Punch out |
| Rear I/O | 2x Full size DisplayPort 1.4a 2x Gb LAN 2x Antenna punch outs 1x Serial/CAN Punch out (DB9, RS232-422-485 Optional) Barrel Jack with 19~24 V input Terminal Block Option - Punch out with 12~24 V |
| Onboard I/O | 1x Battery on a cable 1x Serial Header, RS 232/422/485 2x USB 2.0 (1x4 header) 16 Pin input for Terminal Block Power |
| Expansion Options | 1 M.2 2230 E-key1 M.2 2280 M-key1 M.2 2280/3042 B-key (PCIe x2, USB 3.0, SATA) |
| Storage Options | 1 M.2 2280 M-key1 M.2 2280/60/3042 B-Key (PCIe Gen 3 x1, USB 3.0, SATA III) |
| System Monitoring | On-Board TPM 2.0 (embedded) |
| Dimensions | 160 x 50 x 123 mm (6.3 x 2.0 x 4.8") |
| Case Type (Chassis) | Fanless |
| Case Material | AluminumSteel |
| Case Port Punchouts | 4 Antenna Holes |
| Case Mounting Options | DIN MountVESA Mount (MIS-D 75, 100)Wall Mount |
| Input Voltage Minimum | 12 |
| Input Voltage Maximum | 24 |
| Input Voltage Type | DC |
| Input Voltage Conversion Note | 12~24 VDC |
| Power Automotive Features | Wide Input |
| Power Input Connector | 4-pin Terminal BlockDC Jack |
| Regulatory Certifications | CISPR 32/35 & EN 55032/55035CAN ICES-003(A) / NMB-003(A) (Class A)EN 62311:2020ETSI EN 301 489 (parts 1, 17, 52)ETSI EN 301 893ETSI EN 300 908FCC 47 CFR Part 15 (Class A)FCC/CE Class B upon requestIEC 60601-1-2 (EMC testing only)IEC 60945TAA ComplianceUL/EN/IEC 62368-1 (UL E490677) NRTL + CBUL/EN/IEC 60950-1(UL E490677) NRTL + CB |
| Temperature (Operating Maximum) | 50 |
| Suitable Environments | DustGeneral OfficeIndustrial |
| Humidity (Operating Maximum) | 90 |
| Manufacturer Component Warranty | 2 Year Limited Warranty |
| Additional Features | 4G LTECAN BusDIO |
| Compatible Software | IgnitionRed Hat |
| Notes | Certification Markings: CE, cULus, FCC, UKCA, VCCI, RCM, BIS, BSMI, RoHS, WEEE Available Countries (incl Wi-Fi/BT): Americas: United States, Canada Asia: China, Hong Kong, Japan, Taiwan, India, Singapore Oceania: Australia, New Zealand Europe: Austria, Belgium, Bulgaria, Croatia, Czech Republic, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Liechtenstein, Luxembourg, Malta, Norway, The Netherlands, United Kingdom, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden Colocation approved countries ( Wi-Fi/BT + LTE ): USA, CA, EU, UK, AUS/NZ Available Countries (no Wi-Fi/BT): Americas: Mexico, Brazil Other countries available, please call. |
